SKU: 3256802287560828-3 axis
1325 Atc Cnc Router 1530 3D Wood Carving Cutting Machine Woodworking Machinery with Linear or Carousel Tool Changer
$4,132.00
SPECIFICATIONSname: 1325 atc cnc wood routerWorktable: Vacuum Suction with T-slot TableWorking area: 1300*2500*250mmSpindle: HQD 9.0kw Air Cooling ATC SpindleOrigin: Mainland ChinaModel Number: 1325 atc cnc routerCondition: NewCNC or Not: CNCBrand Name: IGOLDENCNC Product Description 1325 atc cnc router 1530 2030 2130 3d wood cutting machine woodworking machinery with linear or...
SPECIFICATIONS
name: 1325 atc cnc wood router
Worktable: Vacuum Suction with T-slot Table
Working area: 1300*2500*250mm
Spindle: HQD 9.0kw Air Cooling ATC Spindle
Origin: Mainland China
Model Number: 1325 atc cnc router
Condition: New
CNC or Not: CNC
Brand Name: IGOLDENCNC
Product Description
1325 atc cnc router 1530 2030 2130 3d wood cutting machine woodworking machinery with linear or carousel tool changer
Automatic tool changer (ATC) CNC Router machine is suitable for the processing of various complex products or a variety of processing. It can be equipped with 6, 8, 10, 12 tools according to the different production process requirements of customers. There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.
CONTACT US :
sale069@igoldencnc.com we chat/ whats app 008617615816792
CONTACT US :
sale069@igoldencnc.com we chat/ whats app 008617615816792
Specification
|
Model
|
iGW-ATC-1325
|
|
Working area
|
1300*2500*250mm
|
|
Spindle
|
HQD 9.0kw Air Cooling ATC Spindle
|
|
Max. Running Speed
|
50000mm/min
|
|
Max. Working Speed
|
30000mm/min
|
|
Repositioning Accuracy
|
0.02mm
|
|
Machine Body
|
T-type Welding Structure
|
|
Gantry
|
Steel Structure
|
|
Worktable
|
Vacuum Suction with T-slot Table
|
|
Guide Rails
|
Taiwan HIWIN
|
|
Ball Screw
|
Taiwan TBI
|
|
Driver
|
Servo Drive and Servo Motor
|
|
Reducer
|
Japan SHIMPO
|
|
Frequency Converter
|
Taiwan Fuling
|
|
Electrical Components
|
France SCHNEIDER
|
|
Control System
|
Taiwan LNC
|
|
Working Voltage
|
380V/50Hz
|
CONTACT US :
sale069@igoldencnc.com we chat/ whats app 008617615816792

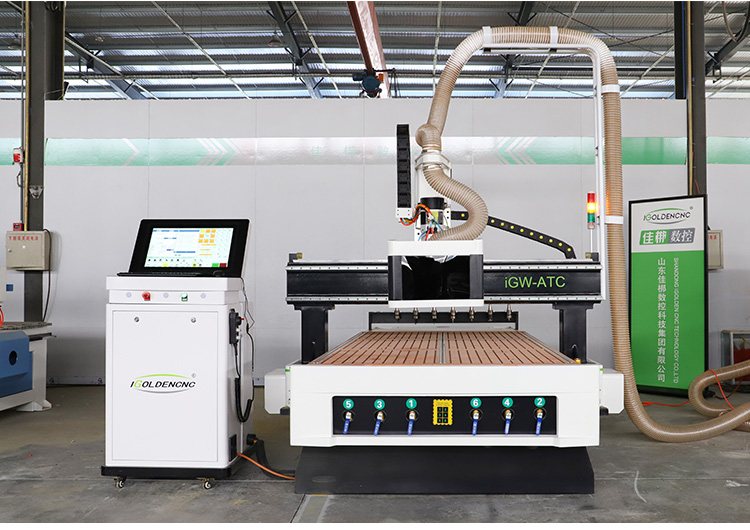

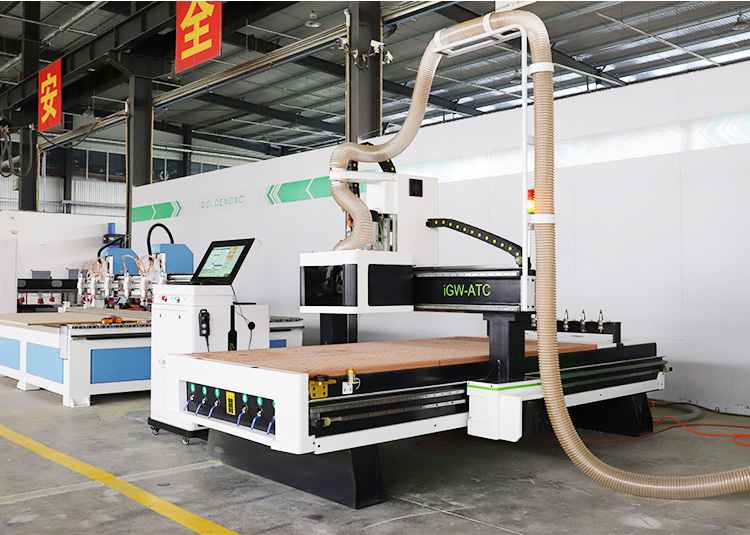

Details Images
CONTACT US :
sale069@igoldencnc.com we chat/ whats app 008617615816792
Optional
optional 1: atc cnc wood machine with spindle swing
optional 2 : atc cnc wood machine with rotary device
optional 3 : atc cnc wood machine with lift tools
sale069@igoldencnc.com we chat/ whats app 008617615816792
Samples
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood
panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables,
panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables,
panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
shandong igolden cnc technology co. ,ltd established in 2012, one the top CNC machine manufacturer from China, the professional solution supplier of CNC application with key technology and independent intellectual property rights. The company integrates research and development with production, sales and after-sales.
Product lines cover 7 series and more than 100 models, include CNC Wood Router, Eps Foam CNC Machine, Stone CNC Machine, Furniture and Cabinet Door Making Machine, Fiber Laser Cutter, Laser Engraver, Laser Marker, CNC Plasma Cutter, and CNC kits, tools and accessories. We always provide customers with high-quality products, competitive price and excellent service.
