SKU: 3256804001544541-LASER MASTER 2 -20W
2022 Newest New diy metal Mini cutter marking Desktop CNC Printer engraving machine
$1,360.00
SPECIFICATIONSWeight (KG): 5 KGWarranty: 1 YearVideo outgoing-inspection: Not AvailableType: Hand Tool PartsSpare Parts Type: LASER ENGRAVERPower adaptor: 12V/3APlace of Origin: Guangdong, ChinaOrigin: Mainland ChinaMotors: Nema 17 stepper motorsMotherboard: OLM-MAX-V10 Motherboard, with 32Bits MCUMechanical precision: Y: 12.5um X:12.5umMarketing Type: Hot Product 2021Machinery Test Report: ProvidedKey Selling Points: Easy to OperateInput voltage:...
SPECIFICATIONS
Weight (KG): 5 KG
Warranty: 1 Year
Video outgoing-inspection: Not Available
Type: Hand Tool Parts
Spare Parts Type: LASER ENGRAVER
Power adaptor: 12V/3A
Place of Origin: Guangdong, China
Origin: Mainland China
Motors: Nema 17 stepper motors
Motherboard: OLM-MAX-V10 Motherboard, with 32Bits MCU
Mechanical precision: Y: 12.5um X:12.5um
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Key Selling Points: Easy to Operate
Input voltage: 110-220V(adjustable)
Frame material: Aluminum + Acrylic
Engraving area: 400x430mm
Control system: LaserGRBL (FREE) LightBurn (Paid Software)
Control model: PWM
Condition: New
Computer OS: Win XP, Win 7, Win8, Win 10(LaserGRBL) Mac and Linux (LightBurn)
After-sales Service Provided: Free spare parts, Online support
After Warranty Service: Online support, Spare parts
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-8{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{width:245px;height:245.00000000000003px;overflow:hidden}#detail_decorate_root .magic-10{position:relative;left:0;top:0;width:245.00000000000003px;height:245.00000000000003px}#detail_decorate_root .magic-11{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:725px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:378px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:328px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:377px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:328px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:377px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:725px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:378px;box-sizing:content-box}#detail_decorate_root .magic-22{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-23{margin-bottom:0}#detail_decorate_root .magic-24{position:relative;width:100%}#detail_decorate_root .magic-25{width:750px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:375px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:2100px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:2100px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:1800px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:1800px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:1125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:1125px}#detail_decorate_root .magic-34{position:relative;left:-1px;top:-4px;width:245px;height:245px}#detail_decorate_root .magic-35{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-36{position:relative;left:-4px;top:-33px;width:245px;height:326.66666666666663px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:750px}
Product Overview
2021 Latest Version OEM Ortur Laser Master 2-7W 15W 20W
● The Laser Master 2 - 7W is good at picture engraving.
● The Laser Master 2 - 15W is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 - 20W is higher power and supports a faster engraving and cutting.
● The Laser Master 2 - 15W is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 - 20W is higher power and supports a faster engraving and cutting.
OLM2-7W Adjustable Focus
OLM2-15W Fixed Focus
OLM2-20W Fixed Focus
PRODUCT SPECIFICATIONS
Specifications of laser master 2 |
Data |
|
Power |
36W, 12V 3A |
|
Wave Length |
445 ± 5nm |
|
Default Focal Length |
55MM for 15W & 20W |
|
Default Focal Length |
58MM for 7W |
|
7W Luminous Power |
1200-1600 mw |
|
15W Luminous Power |
4000-4500 mw |
|
20W Luminous Power |
5000-5500mw |
|
Carving Area |
X: 400MM x Y: 430MM |
|
Motherboard |
OLM-MAX-V10 Motherboard, with 32Bits MCU |
|
Firmware |
Ortur Laser Master V1.4 Firmware |
|
Engraving Speed |
0-3,000MM/Min |
|
Control Mode |
PWM |
|
Computer OS |
Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn) |
|
Control Softwares |
LaserGRBL (free), LightBurn (Paid Software) |
|
Input Format |
NC, DXF, BMP, JPG, PNG, SVG, etc. |
|
Available Materials of Engraving |
Wood, Paperboard, Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc. |
|
Available Materials of Cutting |
Kraft Paper, Paper Board, Thin Plywood, KT Board, Felt Cloth, Leather, etc. |
|
Input Voltage |
110V-220V (Compatible) |
|
Power Adapter Output |
12V / 3A |
|
Operating Temp. |
-10℃-30℃ |
|
Packaging Information |
||
Product Size |
570*550*175.2MM |
|
Box Size: |
590*210*120MM |
|
Net Weight |
2.22KGS (LU1-2) / 2.48KGS (LU1-3 and LU1-4) |
|
Gross Weight: |
3.40KGS (LU1-2) / 3.60KGS (LU1-3 and LU1-4) |
|
Packing Way: |
X-axis Aseembly+Y-axis Aseembly+Laser Module+Accessories, inserted in PE Foam, packed in a cardboard box. |
|
PRODUCT CONFIGURATION
Main Features:
●Specialized Motherboard with STM32 MCU
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master
● Engraving speed could be as high as 3000MM/Min.
●Active Position Protection
●Laser Beam Safety Guard
●Exposure Duration Detection and Limitation
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10.
● LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 - 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master
● Engraving speed could be as high as 3000MM/Min.
●Active Position Protection
●Laser Beam Safety Guard
●Exposure Duration Detection and Limitation
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10.
● LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 - 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.

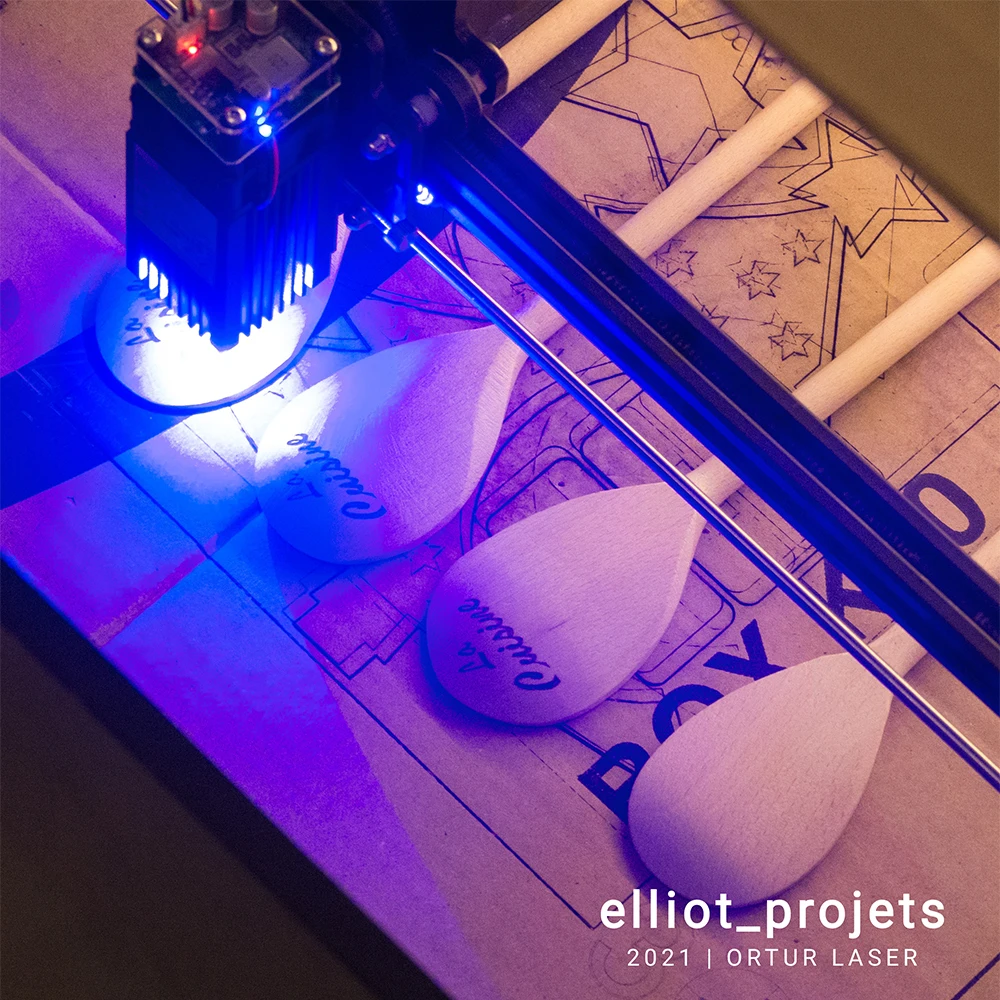

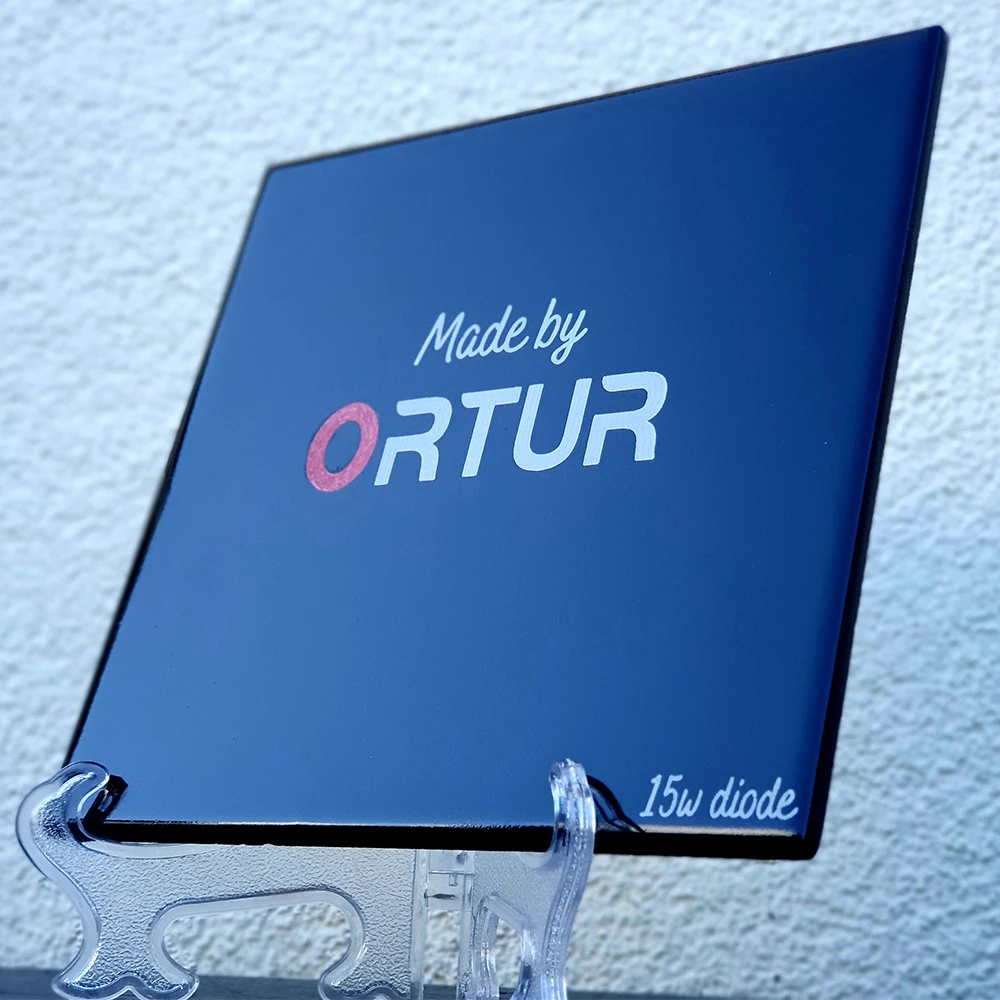

Successful Project
plywood
paperboard
stone
glass
ceramic
