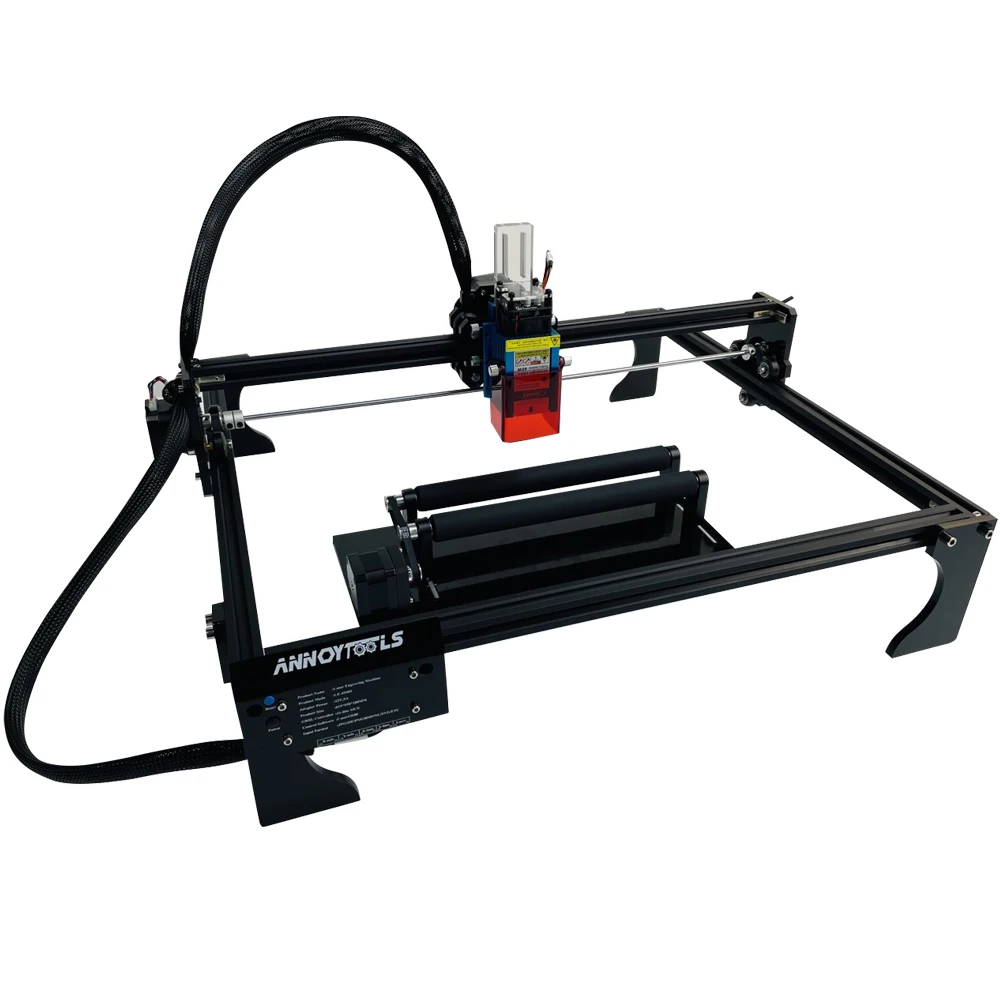

CRTOL New 40W/80w Laser Engraver Cutter CNC Engraving Cutting Machine Metal Arcylic Wood
SPECIFICATIONS
Origin: Mainland China
Model Number: L40/L80
Certification: EMC
Certification: CE
Brand Name: CRTOL
Mode:100*100CM
Power Input:AC100-240V
Sysytem Support;Win XP/7/8/10
Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
Supported Formats:jpg, bmp, svg, G-code
Material:Stainless Steel and Acrylic
Working Voltage:DC 12V
Working Current:DC 5A
Laser Power:40W/80W(Fixed Focus)
Control Software System :CNC software
Engraving Area:100x100cm / 39.37 x 39.37inch (maximum)

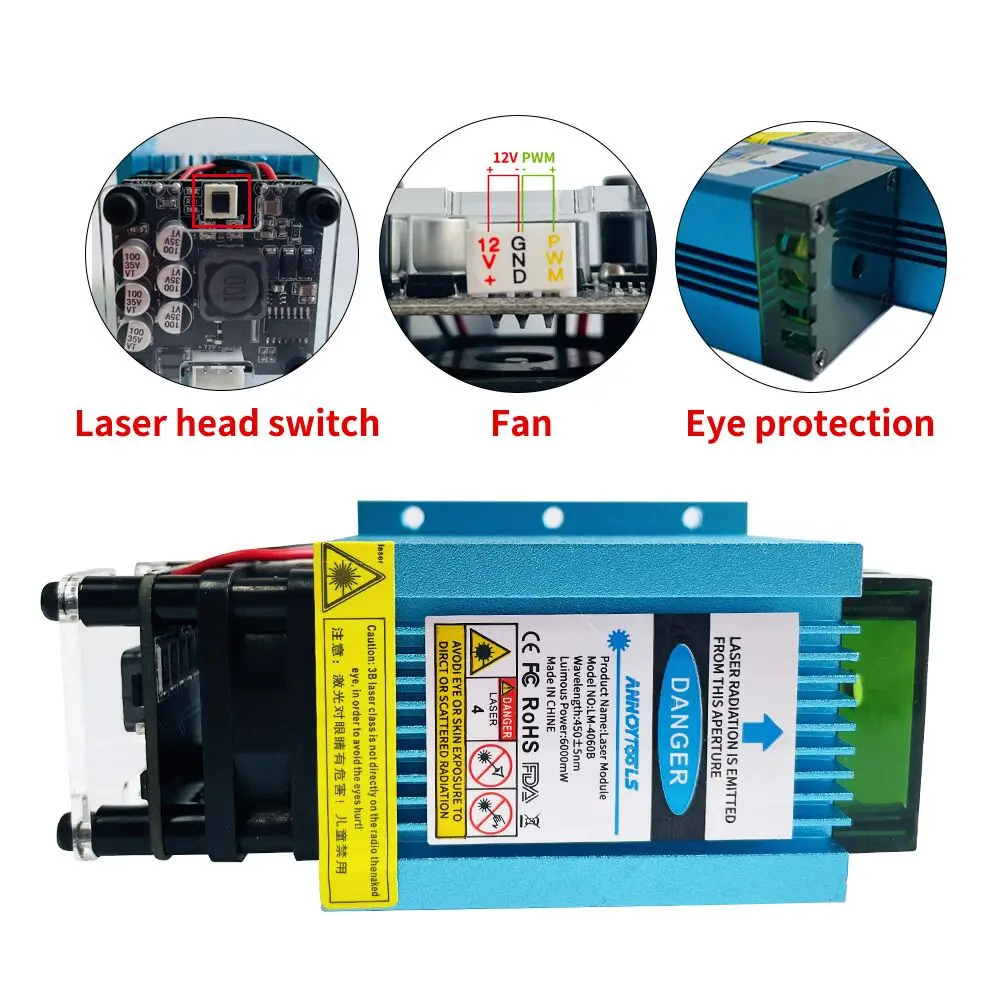

Laser Module Feature:
1.40W Type:
Laser:40w
Optical Power Output:5.5w
Current:1.8A
Laser Tube: LD FAC C-Lens
Laser Wavelength: 445nm±5nm
Beam Shape:Dot ( Fixed Focus )
Operating Voltage:DC 12v
Module Size:40mm X 40mm X 152mm
Cooling Mode:12v 10000 Rpm 40mm Cooling Fan
Focus:0.08*0.08
PWM/TTL Input:0-5v
Input Interface:xh2.54-3pin (+,-, Pwm/ttl)
TTL Output Power:> 1k Hz Output Power = Continuous Power X 40%
Working Frequency:<30khz
Laser Class:class IV
Safe Temperature Range:15 ℃ ~40 ℃
Life Time:15000~20000 Hours
Laser Cable Length:80cm
Heatsink Material:Aluminum + PCTG
Anti-static: Up To 25kv Static Electricity Can Be Eliminated
Shell: Frosted Material, Good Heat Dissipation
Magnetic Blower Protective Shell:constitutes An Air Duct, Has Good Heat Dissipation, And Protects Eyes And Lasers
2.80W Type:
Laser:80W
Optical power output:9.5W~11W
Current:3.8A
Laser tube:2xLD+FAC+C-Lens
Laser wavelength:445nm±5nm
Beam shape:Dot ( Fixed Focus )
Operating voltage:DC 12V
Focus:0.08*0.08
PWM/TTL input:0-5V
Input interface:XH2.54-3Pin (+,-, PWM/TTL)
TTL output power:> 1K HZ output power = continuous power x 40%
Working frequency:<30KHz
Laser class:Class IV
Safe temperature range:15 ℃ ~40 ℃
Life time:15000~20000 hours
Anti-static: Up to 25kV static electricity can be eliminated
Shell: Frosted material, good heat dissipation
Magnetic blower protective shell:Constitutes an air duct, has good heat dissipation, and protects eyes and lasers
