Industry Raycus 1kw 2kw 3kw Cnc Laser Pipe Cutter / Fiber Laser Cutting Tube Machine Price

SPECIFICATIONSOrigin: Mainland ChinaModel Number: AKJ60FIs Smart Device: YESCondition: NewCertification: CECNC or Not: CNCBrand Name: ACCTEK Industry Raycus 1kw 2kw 3kw Cnc Laser Pipe Cutter / Fiber Laser Cutting Tube Machine Price Contact us Name:Victor Zhang Email:export30@acctekcnc.com Whatsapp:+86 17865186575 w:www.accteklaser.com AKJ60F Metal Pipe laser cutting machine is one new design professional...
Size :
-
+
$82,000.00

0

8 In Stock

SPECIFICATIONS

Origin: Mainland China

Model Number: AKJ60F

Is Smart Device: YES

Condition: New

Certification: CE

CNC or Not: CNC

Brand Name: ACCTEK


Industry Raycus 1kw 2kw 3kw Cnc Laser Pipe Cutter / Fiber Laser Cutting Tube Machine Price


Contact us

Name:Victor Zhang

Email:export30@acctekcnc.com

Whatsapp:+86 17865186575

w:www.accteklaser.com


AKJ60F Metal Pipe laser cutting machine is one new design professional for tube and pipe cutting,mainly used for cutting square tube,rectangular tube,oval tube,waist type tube,Dtube,Hexagonal tube

Fiber laser tube:square tube 20*20,150*150MM,round tube 20-210 wall thickness of 0.5-10MM carbon steel tube,0.5-10MM stainless steel(thickness is depends on the laser power)


FEATURES AT A GLANCE


♦ The whole structure is welded, stable performance,to ensure the stable operation.

♦ With 650C high temperature heat treatment and a large milling machine high precision machining ,the working bed can be ensured the stablity and smoothness.

♦Operation system,easy control system,easy to learn and operating.

♦high quanlity ,high efficieny fiber laser generator,low processing cost,help saving energy conservation and environmental

protection.

♦Automatic chuck the front and buttom,easy to feeding,designed for saving material.

♦Equipped with japan servo system,using gear rack movement structure to ensure the high speed,high precision ,high reliablility.

♦new beautiful design for protective panel,can protect human safe when do cutting job.


PRODUCT SPECIFICATIONS


Parameters:
Applicable Material
metal
Cutting Area
(Φ20-Φ220mm)*6000 mm length
Cutting Speed
80m/min
Graphic Format Supported
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness
0-20mm
Cooling Mode
WATER COOLING

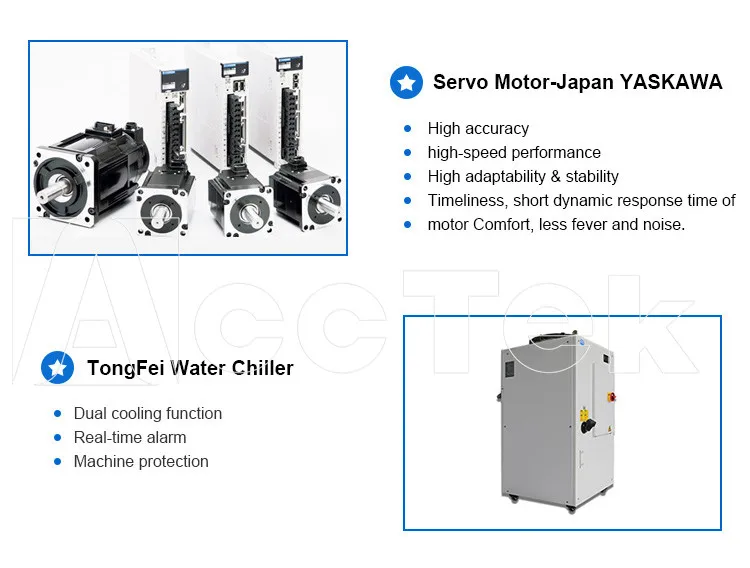

Servo Motor Brand
Yaskawa
Guiderail Brand
Hiwin/Lapping
Control System Brand
Cypcut
Laser power
1500W / 1000W / 2000W/3000W/4000W/6000W
Laser source

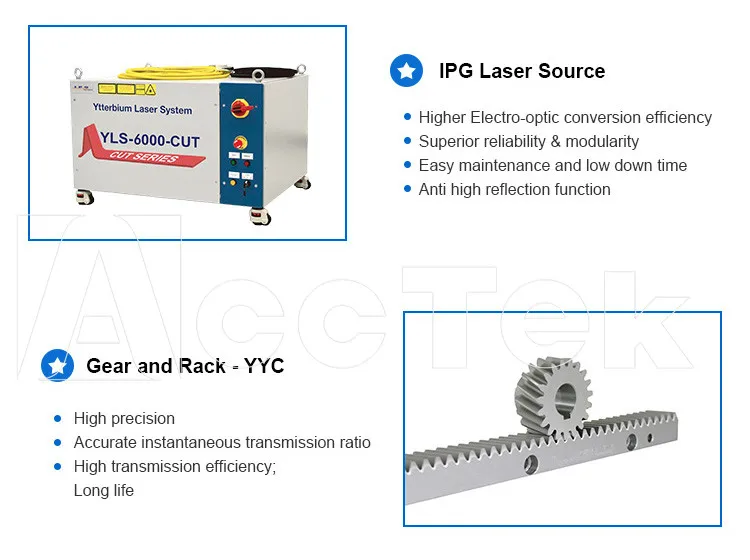

Raycus IPG
Laser head
Raytools
Control system
Cypcut
 Z Axis Transmission
Ball Screw Transmission


PRODUCT CONFIGURATION


Professinal Metal tube Laser Cutting Machine
1. Widely used in glasses,electronics,appliances and other precision machinery,hardware,microelectronic industry.
2. 600° heat treatment and 24 hours with the furnace cooling,8 meters gantry milling finishing,precision welding protection of carbon dioxide,to ensure the normal use for 20 years without deformation.
3. Rail installation with precision collimator test,the accuracy is less than 0.01MM.
4. Taiwan grinding screw drive,fully enclosed protective cover.
5. High precision ,high speed,smooth cutting surface.
6. Configure japan panasonic linetia serve system with high precision.
Optionl: Auto load




Sample show


Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement. Professional tube fiber laser cutting machine—AKJ60F is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube 20*20-150*150mm, round tube Φ20-Φ210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.







About ACCTEK


Jinan AccTek Machinery Company specializes in manufacturing CNC Router and Laser machines.
Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing.

Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty.

Components for our machines are sourced from world class suppliers and innovators in machine control.
These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work,

aluminum fabrication, boat building, shop fitting, mold making, to name a few.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.
“Our business is to improve your business”



FEEDBACK FROM CUSTOMERS




After-sales Service




1) Guarantee 3 years guarantee of the whole machine. 1.5 years for laser generator.

2) Software issue Our technician is able to re-install or set up by remote for free.

3) Hardware issue Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.

4) Support online Our technician is able to teach you online to run the machine or eliminate

the fault for free.

5) Training in AccTek factory We are able to train your staff after placed order in our factory for free.

6)On-site training(Recommended, the most effective way) We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)


A. Free sample making
For free sample making/ testing, please send your samples or products DXF or other formats of Graphics to our company in China. We will make free samples and send you without payment.
B. Progressing Solution Design According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
