SKU: 3256802246140820-XY-2-PRO 2E-United Kingdom

Tronxy XY-2 PRO 2E 3D Printer 255x255mm 2 in 1 Out Extruder Dual Colors Head Titan Extruder Removable Platform Resume Printing

SPECIFICATIONSuse for: 3D printinguse: printingtype 6: 3d printer kittype 5: impressora 3dtype 4: imprimante 3dtype 3: 3d drucker zubehoertype 2: imptesoras 3dtype 1: 3d printer dualmodel: 3d metal printerfunction: mega construx haloVoltage: 110-220VSlice Thickness: 0.1-0.4mmSlice Software: Repetier-host/CuraPrinting Speed: 20mm/sPrecision: XY:0.0125mm , Z:0.02mmPower Supply: 24VOrigin: Mainland ChinaOperating System: Linux/WIN7/MACNozzle Diameter: 0.4mmMaximum...
color :
XY-2-PRO 2E
Ships From :
-
+
$484.44

0

8 In Stock

SPECIFICATIONS

use for: 3D printing

use: printing

type 6: 3d printer kit

type 5: impressora 3d

type 4: imprimante 3d

type 3: 3d drucker zubehoer

type 2: imptesoras 3d

type 1: 3d printer dual

model: 3d metal printer

function: mega construx halo

Voltage: 110-220V

Slice Thickness: 0.1-0.4mm

Slice Software: Repetier-host/Cura

Printing Speed: 20mm/s

Precision: XY:0.0125mm , Z:0.02mm

Power Supply: 24V

Origin: Mainland China

Operating System: Linux/WIN7/MAC

Nozzle Diameter: 0.4mm

Maximum Working Speed: 100mm/s

Maximum Printing Speed: 150mm/s

Maximum Print Size: 255mm*255mm*245mm

Language: English/Chinese

Interface Type: USB

Fliament: TPU PLA ABS HLPS Flxible WOOD PC PVC and so on

File Format: STL.G-code,OBJ

Diameter Temp: 270

Consumables Diameter: 1.75mm

Color Print Speed: 20-150mm/s

Certification: CE

CE Certification: Yes

Brand Name: ULTRABOT

Bed Temp: 110

Auto Leveling: YES

XY-2PRO-2E

Tips:

The complicated assembly process has been completed before leaving the factory, but the printer needs to be simply assembled to combine the assembled parts.

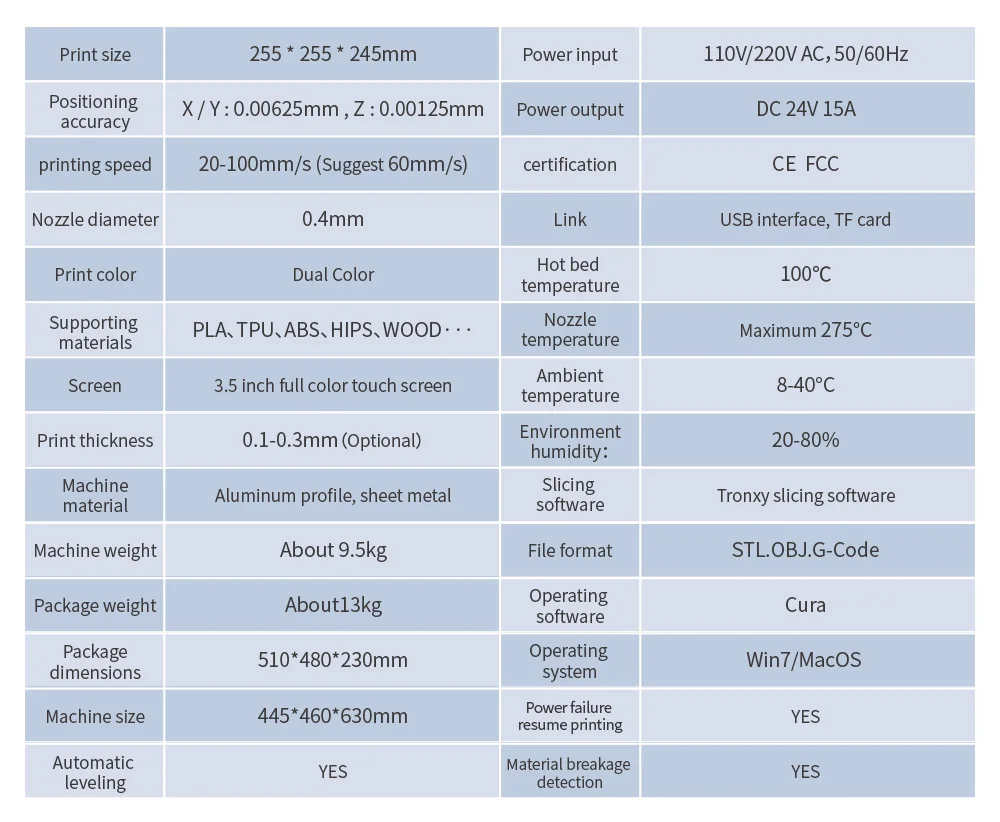

Machine parameters:

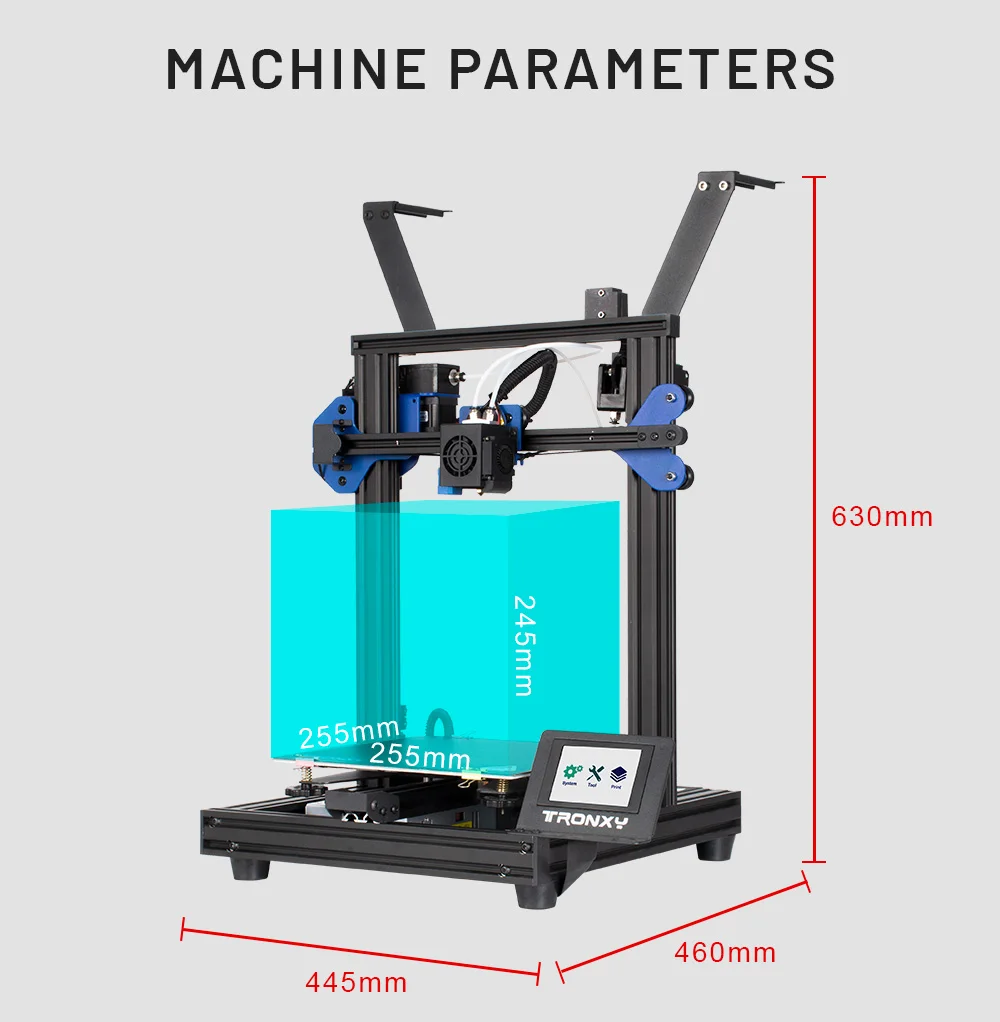

Print size: 255*255*245mm
Print thickness:0.1-0.3mm
Materials supported: 1.75MM PLA ABS PETG TPU
Print speed :20mm-100MM/s
Positioning accuracy:
X/Y:S0.00625 Z:S0.00125mm

Environmental temp: 8 ℃ - 40 ℃
Nozzle temp: Max275 ℃
Heat bed temp: Max100 ℃

Slicing software: Tronxy slicer
File format: STL.OBJ.DAE.AMF.G code
Operation software: Repetier-Host / Cura
Operation system: Windows
Connection: USB cable, TF card

8GB SD Card + Card Reader


The attached SD card provides an electronic version of the operating instructions and a link to the installation video. At the same time, there are some G code files in the SD card that can be printed directly
Attached manual:
1. Machine parameter
2. Introduction to machine structure
3. Packing list
4. Installation instructions
5. Interface operation and printing
6. Slice software ...Fault cause analysis
and so on

Mute motherboard

XY-2 PRO 2E mute motherboard, experience unprecedented quietness--TRONXY
The design of the silent motherboard extends the application scenarios of 3D printers, starting from ordinary manufacturing to indoor places such as homes, offices, research institutes, etc., especially in some relatively quiet public areas, it is necessary to arrange a 3D printer with a silent function. Mute motherboard original quality, supplemented by ultra-quiet design, ultra quiet, no noise can be heard

TRONXY silent motherboard adopts German imported TMC ultra-quiet motor drive chip, ultra-quiet system design, so that the machine is always running at low decibels . When you are in a quiet environment, you can safely and boldly perform 3D printing operations without apologizing, and you never need to worry about noise disturbing other people.
Active noise reduction, the effect is more significant ------ The mute motherboard has a built-in active noise reduction function, modulating the voltage carrier to minimize the current wave, cancel the noise, and the noise reduction effect is more obvious.

TITAN Extruder

Double Gear Extrusion Mechanism
* Optimized extrusion torque and path orientation.
* Compatible with flexible filaments like TPU.
* Stronger torque
* Route optimization
* TPU filament
