SKU: 3256804154173447

wood panel engraving 1325 multi functional carpenter woodworking cnc machine for wholesales

SPECIFICATIONSWorking area: 1300*2500*200mmVoltage: 3phase 380V/50HZTransmission: XY Axis Germany helical rackTable: Aluminum/Vacuum tablePower: customizedOrigin: Mainland ChinaMotor driver: Stepper/Servo for used cnc wood routerModel Number: iGW-3AS-1325Guide rail: XYZ Axis Taiwan liner square guide railControl system: NcStudio /DSP for 3d cnc engraverCondition: NewCertification: CECNC or Not: CNCBrand Name: IGOLDENCNCBed: Thick welded square tubeBallscrew:...
Title :
-
+
$7,998.00

0

10 In Stock

SPECIFICATIONS

Working area: 1300*2500*200mm

Voltage: 3phase 380V/50HZ

Transmission: XY Axis Germany helical rack

Table: Aluminum/Vacuum table

Power: customized

Origin: Mainland China

Motor driver: Stepper/Servo for used cnc wood router

Model Number: iGW-3AS-1325

Guide rail: XYZ Axis Taiwan liner square guide rail

Control system: NcStudio /DSP for 3d cnc engraver

Condition: New

Certification: CE

CNC or Not: CNC

Brand Name: IGOLDENCNC

Bed: Thick welded square tube

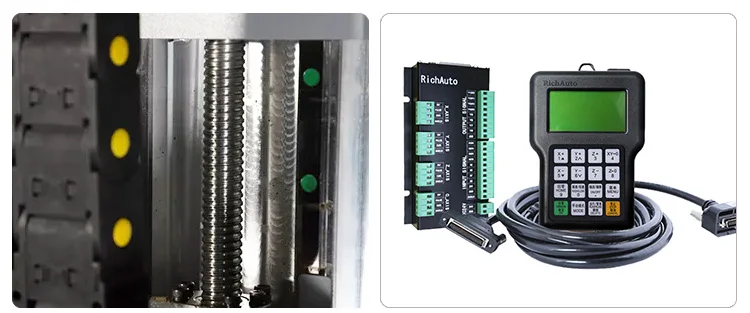

Ballscrew: Z Axis Taiwan TBI ball screw

china 3 axis cnc machine 1325 cnc router engraver 3d cnc woodworking machinery price for sale


CONTACT US :


sale069@igoldencnc.com we chat/ whats app 008617615816792

Specification
Model
iGW-G8-S
Bed
Heavy duty welded bed
Spindle
6KW air-cooled HQD spindle
Maximum working speed
20000mm/min
Spindle speed
18000rpm
Positioning accuracy
0.05mm
Table
Vacuum adsorption / Aluminum profile
Rail
Taiwan HINWIN
X, Y axis transmission
Rack
Z-axis transmission
Ball screw
Motor
stepper motor
Inverter
Fuling
Chassis
New standalone G8 chassis
System
DSPA11
Working voltage
AC220V/380V, 50Hz
CONTACT US :


sale069@igoldencnc.com we chat/ whats app 008617615816792

Details Images
CONTACT US :


sale069@igoldencnc.com we chat/ whats app 008617615816792

Samples
1. Woodworking industry: solid wood doors, cabinet doors, paint-free doors, craft wooden doors, 3D wave boards, screens, craft fans, game panels and cabinets, computer desks, panel furniture products and so on.
2. Wooden crafts industry: clock frames, craft photo frames, calligraphic cards, electrical counter tops, thin aluminum plate engraving.
CONTACT US :


sale069@igoldencnc.com we chat/ whats app 008617615816792

Company Profile

shandong igolden cnc technology co. ,ltd established in 2012, one the top CNC machine manufacturer from China, the professional solution supplier of CNC application with key technology and independent intellectual property rights. The company integrates research and development with production, sales and after-sales.

Product lines cover 7 series and more than 100 models, include CNC Wood Router, Eps Foam CNC Machine, Stone CNC Machine, Furniture and Cabinet Door Making Machine, Fiber Laser Cutter, Laser Engraver, Laser Marker, CNC Plasma Cutter, and CNC kits, tools and accessories. We always provide customers with high-quality products, competitive price and excellent service.
